Analyzer

product description

The Urine Analyzer is intended to be used with the urinalysis strips for clinical urine testing. The urinalysis strip could detect Urobilinogen, Bilirubin, Ketone (acetoacetic acid), Occult blood, Protein, Nitrite, Leukocytes, Glucose, Specific Gravity, pH, Vitamin C, Microalbumin or Creatinine in human urine.

Ordering Information

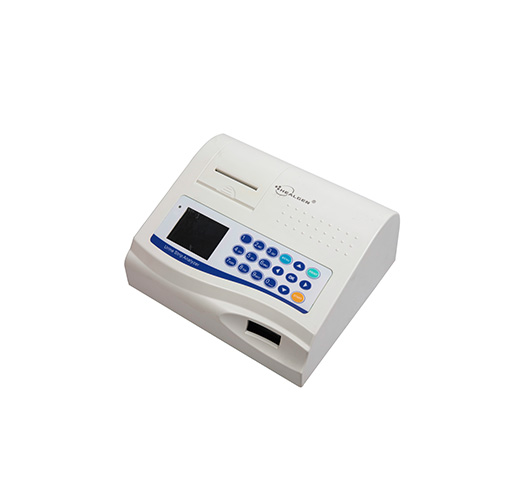

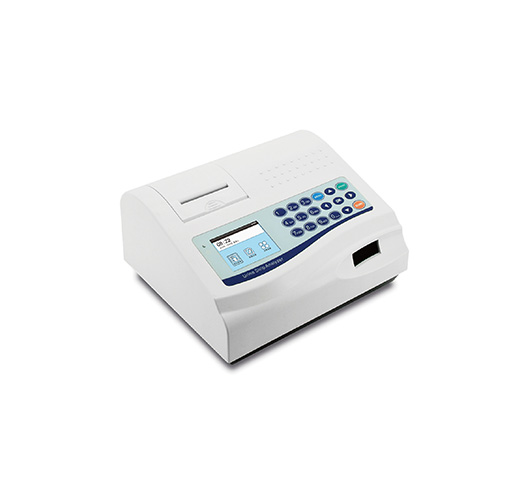

Model	Healgen 500
Test Model	One step (60 pieces/hour), Slow (60 pieces/hour), Fast (120 pieces/hour)
Display	LCD, resolution: 320*240
Principle	RGB tricolor test theory
Communication interface	Standard RS232 interface, USB interface
Repeatability	CV≤1%
Stability	CV≤1%
Record mode	Micro-thermal printer, LCD, Flash ROM data storage.
Printer	Built-in micro-thermal printer, row width for the paper: 57mm
Operation temperature	10°C ~30°C
Relative humidity	≤80%
Power supply	100-240VAC 50/60Hz
Fuse	T1.6AL250V
Dimension	240mm(L)220mm(W)130mm(H)

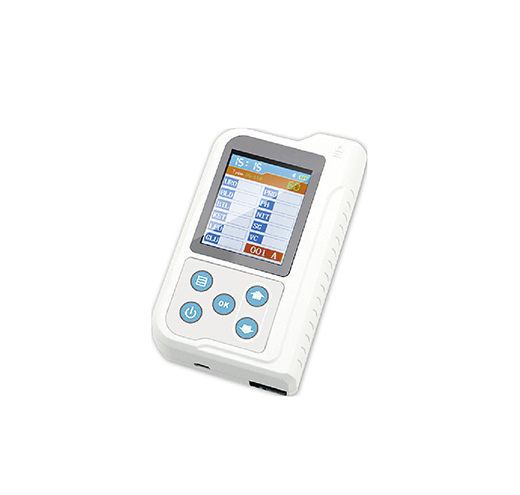

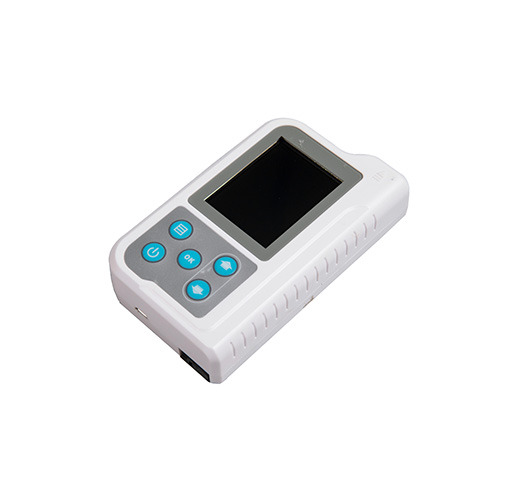

Model	Healgen 501
Test Model	Single-step test
Display	LCD, resolution: 320*240
Principle	RGB tricolor test theory
Communication interface	Micro USB interface, Bluetooth wireless communication (optional Bluetooth)
Repeatability	CV≤1%
Stability	CV≤1%
Record mode	LCD display, Flash ROM data storage
Relative humidity	≤80%
Power supply	Built-in rechargeable lithium battery 3.7V, 1900mAh Host computer: DC 5V, 1A
Operation environment	Temperature: 10°C ~30°C Relative humidity: ≤80% Atmospheric pressure: 76kPa~106kPa Away from the strong electric field (magnetic field), avoid direct sunlight
Dimension	126mm(L)73.5mm(W)30mm(H)

Type product recommendation

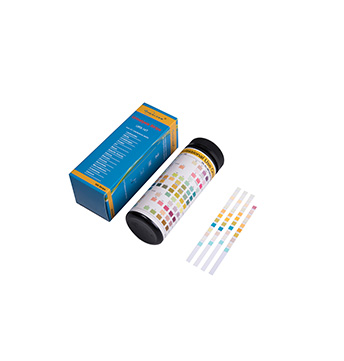

Strips
